UCI Series Unit Heater
UCI Series Unit Heater Overview
ZIRCO distributes INDEECO UCI Series Unit Heaters as the official Canada representative. These heavy-duty unit heaters are engineered for demanding industrial and commercial applications, providing reliable heating performance with capacities up to 60 kW at 2,000 CFM airflow. The UCI Series delivers consistent warmth for large spaces such as warehouses, manufacturing plants, workshops, and commercial facilities.
Designed with flexibility in mind, the UCI Series offers a wide range of factory built-in or field-installed control options to meet specific job specifications. The single point electrical hook-up simplifies installation—heater, fan motor, and controls are all connected to the same branch circuit with easy access through the side-mounted control compartment.

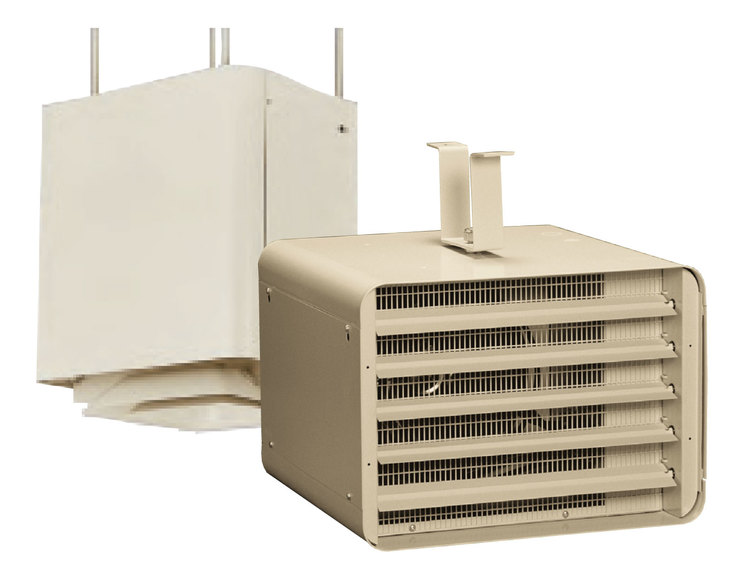

The UCI heater can be mounted horizontally using the supplied brackets or vertically using four threaded rods (not included). Units under 40 kW come with wall and ceiling brackets, while 40-60 kW models include four corner support brackets for ceiling mounting. The blow-through fan design reduces motor operating temperature for extended service life in demanding Western Canada industrial environments.
Why Choose UCI Series Unit Heaters?
Large Capacity
Heavy-duty construction with ratings up to 60 kW at 2,000 CFM airflow for heating large industrial and commercial spaces efficiently.
Flexible Control Options
Wide range of factory built-in or field-installed control options including contactors, disconnect switches, fusing, relays, and thermostats to meet job specifications.
Single Point Electrical
Heater, fan motor, and controls all connected to the same branch circuit with easy access through side-mounted control compartment for simplified installation.
Heavy-Duty Construction
Cabinet constructed of 18 and 20-gauge galvanized steel finished with durable almond polyester powder paint for long-lasting industrial performance.
Premium Heating Elements
Industrial grade stainless steel tubular elements in 2-10 kW units and steel finned tubular elements in 15-60 kW units for reliable, efficient heating.
Durable Fan Motor
Totally enclosed, thermally protected motor with factory-lubricated ball bearings operates at 58-77 dBA. Blow-through design reduces motor temperature for longer life.
Technical Specifications
Standard Features
| Feature | Specification |
|---|---|
| Capacity Range | 2 kW to 60 kW |
| Airflow | Up to 2,000 CFM |
| Heating Elements | Industrial grade stainless steel tubular elements (2-10 kW), steel finned tubular elements (15-60 kW) |
| Housing Construction | 18 and 20-gauge galvanized steel with almond polyester powder paint finish |
| Outlet Grille | Individually adjustable louvers to direct airflow; protective outlet mesh screen on 2-30 kW heaters |
| Fan Motor | Totally enclosed, thermally protected motor with factory-lubricated ball bearings; operates at 58 dBA (2-10 kW), 67 dBA (15-30 kW), or 77 dBA (40-60 kW) |
| Motor Design | Blow-through design reduces motor operating temperature for longer life |
| Built-in Controls | 240/208 volt control circuit (with transformer if necessary), automatic reset thermal cutout, fan override, factory-installed contactor |
| Fusing | Power fusing supplied for heaters over 48 amps |
| Mounting Options | Horizontal (using supplied brackets) or vertical (using four threaded rods, not included) |
| Mounting Hardware | Wall and ceiling bracket for units under 40 kW; four corner support brackets for 40-60 kW heaters |
| Control Compartment | Side-mounted for easy access to field connections and built-in controls |
| Single Point Hook-up | Heater, fan motor, and controls all connected to same branch circuit |
Installation Requirements
| Heater Size | Maximum Mounting Height | Minimum Mounting Height |
|---|---|---|
| 2-10 kW | 8 feet | Lower mounting possible with protective mesh screen |
| 15-30 kW | 10 feet | Lower mounting possible with protective mesh screen |
| 40-60 kW | 15 feet | 8 feet minimum |
Maximum ambient room temperature for proper operation is 85°F (29°C).
Note: These units are not for residential use in the United States.
Factory Built-in Options
- Three Pole Contactor
- Disconnect Switch
- Fusing
- Manual Reset
- 24V Relay
- 24V Relay with Transformer
- Thermostat
- Fan "on" Switch
- 120V Control, fused secondary and grounded
Field-Installed Options
Shipped loose for field installation into heater:
- Diffuser cone
- Thermostat Kit
- Relay Kit
- Relay Kit with Transformer
Approvals & Certifications
- CSA Certified - Canadian Standards Association (US and Canada approvals)
- Third-party approved to UL standard 2021
Typical Applications
- Garages and Service Facilities
- Mechanical Rooms
- Stairwells
- Vestibules
- Warehouses and Distribution Centers
- Workshops and Manufacturing Plants
- Commercial Facilities
- Industrial Buildings
Thermostat Options
ZIRCO offers a range of thermostat options to complement your UCI Series Unit Heater:
- Line Voltage Thermostats - Direct control for simple applications
- Low Voltage Thermostats - Enhanced control with transformer integration
- Clear Universal Thermostat Guard - Protects both line and low voltage thermostats against vandalism, damage, and unauthorized adjustment of settings
Product Literature & Resources
Technical Documents
INDEECO EXP Unit Heaters Catalog
Complete unit heater product line information including UCI Series specifications
UCI Relay Kit Installation Guide
Installation instructions for relay kit accessories
UCI Thermostat Kit Installation Guide
Installation instructions for thermostat kit accessories
Contact for More Information
ZIRCO is the authorized Canada representative for INDEECO UCI Series Unit Heaters. Contact our team for:
- Technical specifications and sizing assistance
- Control options and configuration recommendations
- Application engineering support
- Quotations and delivery information
- After-sales service and support
- Thermostat and accessory selection
- Mounting and installation guidance
Need High-Capacity Heating for Your Industrial Space?
Contact our team today to discuss how INDEECO UCI Series Unit Heaters can provide reliable, heavy-duty heating for your demanding commercial or industrial application. ZIRCO provides expert support for Western Canada's warehouses, workshops, manufacturing facilities, and commercial buildings.
