BURNERS &
BURNER MANAGEMENT SYSTEMS

Flameco Industries_edited.jpg

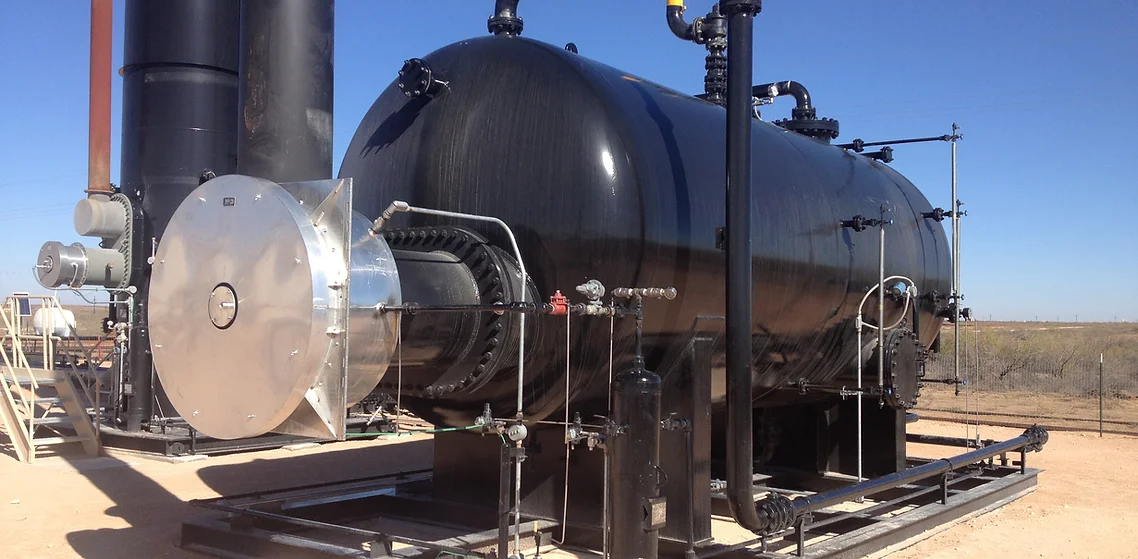

NATURAL DRAFT BURNERS

O-TYPE BURNER - The O-type burner is the economic choice for a unit under 3.0MM BTU. O-types are typically used for a single firetube application.


TWO PIECE BURNER - The two-piece burner was created for protecting the flame cell when inspection and recovery of parts is necessary. The hinged, two-piece design is especially useful on bigger units (28” and larger).


BOX TYPE BURNER - The box-type burner was designed to be able to reach a higher BTU rating while taking up minimal space. This compact  design utilizes multiple flame cells in close quarters in order to get the desired BTU rating.

ACL - Image - CSC400_edited.png

COMBUSTION CONTROLLERS

  • Provide reliable monitoring and control of process temperature with alarm and shutdown features with two independent  temperature switching points and transmitter signals

  • Provide automatic ignition, flame fail, auto re-light and shutdown capabilities for all gas fired heaters

  • Simple to use, no programming necessary, 2 button operation

CSA APPROVED
BURNER TRAINS

ACL - Image - Electric Valve Train_edite
  • CSA Pre-Approved for B149.3-15 pre-assembled with CSA certified components approved for Class I, Div I location

  • Configured in left- or right-hand choice of solenoid valves (Peter Paul or ASCO)

  • For use in industrial heating applications requiring electric solenoids

  • All stainless steel fittings and ball valves

  • Pre-set pressure switches

  • Liquid filled gauges

  • Ambient operating temperature -40°C to +60°C
