B100 Series Pressure & Vacuum Relief Valves Overview
ZIRCO is proud to distribute 3B Controls B100 Series Pressure & Vacuum Relief Valves as the official representative for Western Canada. These UK-manufactured valves are designed to keep tanks and vessels safe during periods of excessive pressure and vacuum caused by filling and emptying of product and changes in temperature.
The B100 Series ensures reliable protection for storage tanks and vessels in Alberta's demanding oil & gas industry. These conservation vents open at pre-set pressures to discharge vapour, then close to create a seal when normal conditions return.
Available in both weight-loaded and spring-loaded configurations, with options for open or closed venting. The lightweight design and removable seats make maintenance simple and cost-effective.
Why Choose B100 Series PV Valves?
Low Cost Maintenance
Lightweight design provides easy handling while interchangeable components ensure standard parts are easily replaced, minimizing downtime and maintenance costs.
Testing & Quality
All products are factory tested and fully certified. UK-manufactured to the highest quality standards with rigorous quality control processes.
Self Draining
All products are designed so that any condensate drains away from seating areas, preventing corrosion and ensuring reliable operation in all conditions.
Low Leakage
Standard seating design ensures minimum leakage of less than 1 scfh at 90% of set pressure, providing excellent sealing and emissions control.
Stainless Steel Internal Parts
Internal parts are stainless steel as standard. Non-standard materials available upon request for corrosive or hazardous applications.
Multiple Connection Options
All valves supplied with full form flanges to meet individual requirements. ANSI/DIN/JIS standards available. Other connections available upon request.
Technical Specifications
B100 Series Options
| Series | Type | Pressure Range | Vacuum Range |
|---|---|---|---|

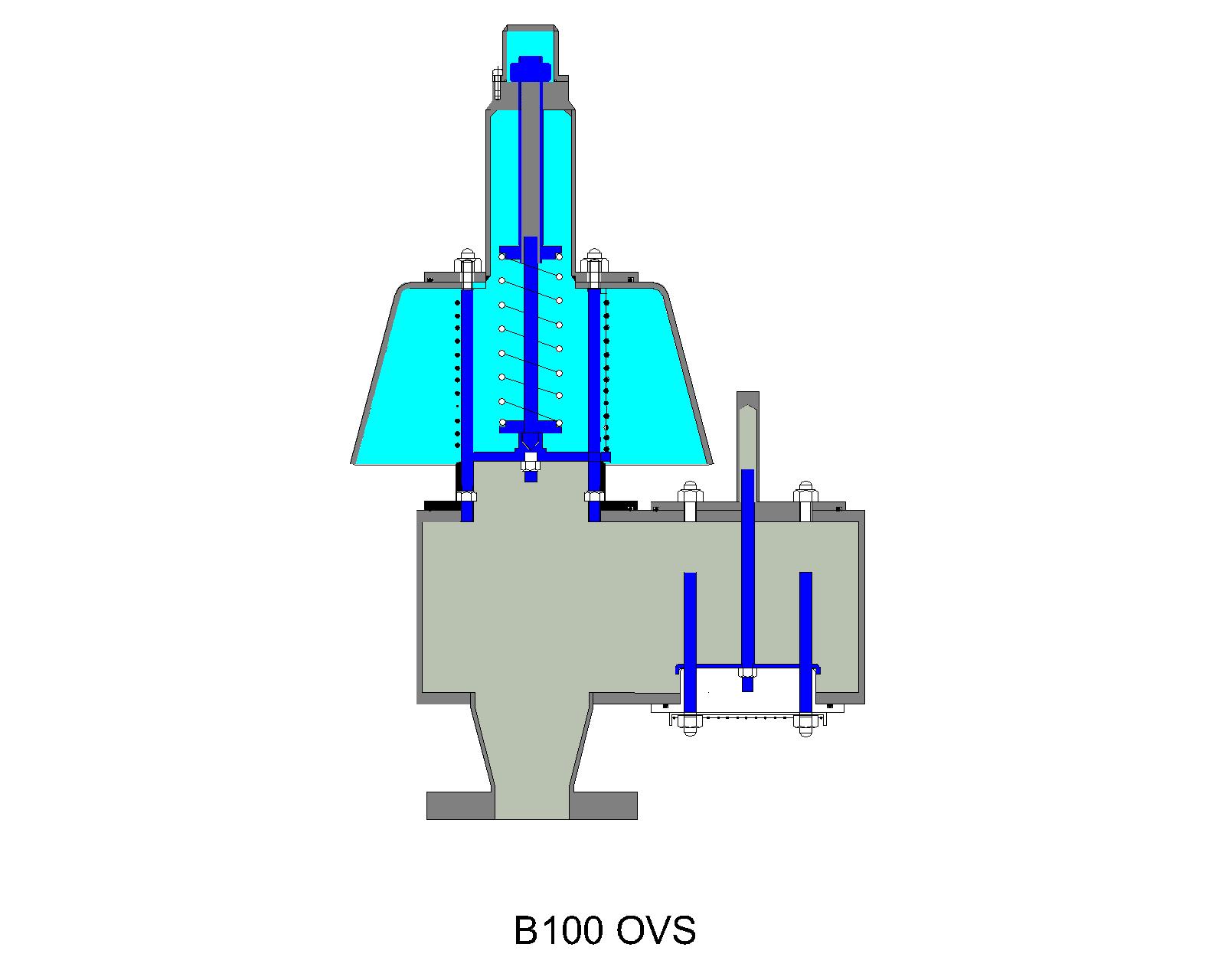

| B100 OVS | Open Vent - Spring Loaded | +100 mbarg to +2 barg | -2 mbarg to -0.8 barg |

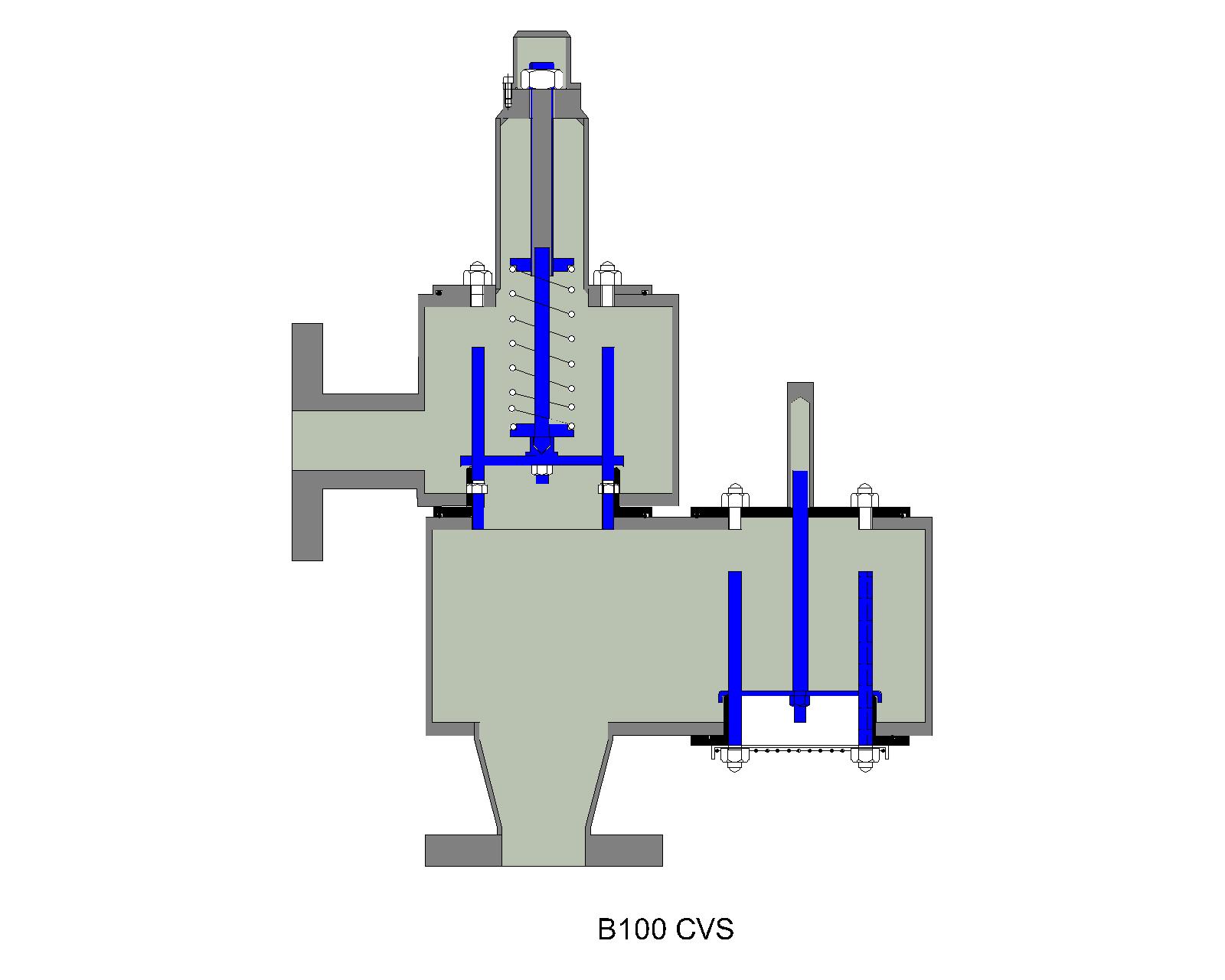

| B100 CVS | Closed Vent - Spring Loaded | +100 mbarg to +2 barg | -2 mbarg to -0.8 barg |
| B100 OV | Open Vent - Weight Loaded | +2 mbarg to +100 mbarg | -2 mbarg to -100 mbarg |

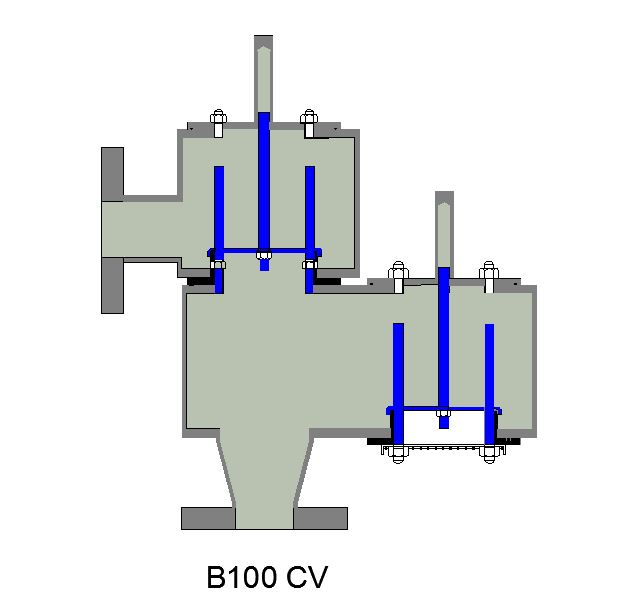

| B100 CV | Closed Vent - Weight Loaded | +2 mbarg to +100 mbarg | -2 mbarg to -100 mbarg |
Note: For settings outside standard ranges, please consult our manufacturing team.
Size & Material Specifications
| Specification | Details |
|---|---|
| Size Range | 2" (50 mm) to 12" (300 mm) |
| Body Materials | Aluminium, Carbon Steel, Stainless Steel |
| Trim Material | Stainless Steel (standard) |
| Diaphragm Material | PTFE |
| Flange Standards | ANSI / DIN / JIS / Specials |
| Design Features | Removable seats, lightweight construction |
Optional Features & Accessories
| Feature | Description |
|---|---|
| Steam Jackets | Available for cold weather applications |
| Proximity Switches | Indicate pallet lift for monitoring |
| Tri Clamp Connections | Alternative connection method |
| Screwed Connections | Alternative connection method |
| Special Materials | Exotic materials available (Hastelloy, various plastics) for hazardous applications |
| Special Coatings | Available for extreme service and low temperature duties |
Typical Applications
- Storage tanks and vessels in oil & gas industry
- Protection against excessive pressure from filling operations
- Protection against vacuum from emptying operations
- Temperature changes due to climatic conditions
- External fire scenarios
- Petrochemical storage facilities
- Chemical processing plants
- Refinery storage tanks
What Is the Purpose of a PV Valve?
Pressure & vacuum relief valves (sometimes known as conservation vents) are designed to protect storage tanks, opening at a pre-set pressure, and discharging vapour. Once the filling / emptying has ended the pressure will drop in the tank and the valve will close, creating a seal.
The B100 Series provides reliable protection for your storage assets while minimizing product loss and emissions, essential for Western Canada's oil & gas operations.
Product Literature & Resources
Technical Documents
B100 CV Series Brochure
Closed Vent - Weight Loaded specifications
B100 CVS Series Brochure
Closed Vent - Spring Loaded specifications
B100 OV Series Brochure
Open Vent - Weight Loaded specifications
B100 OVS Series Brochure
Open Vent - Spring Loaded specifications
Request for Quote
Request for Quote (RFQ) Form
Download and complete this form to submit your relief valve requirements for quotation
Contact for More Information
ZIRCO is the authorized Western Canada representative for 3B Controls B100 Series Pressure & Vacuum Relief Valves. Contact our team for:
- Technical specifications and sizing
- Application engineering support
- Quotations and delivery information
- After-sales service and support
- Custom configurations for special applications
Ready to Protect Your Storage Assets?
Contact our team today to discuss how 3B Controls B100 Series PV Valves can provide reliable protection for your storage tanks and vessels. ZIRCO provides expert support for Western Canada's industrial applications.
