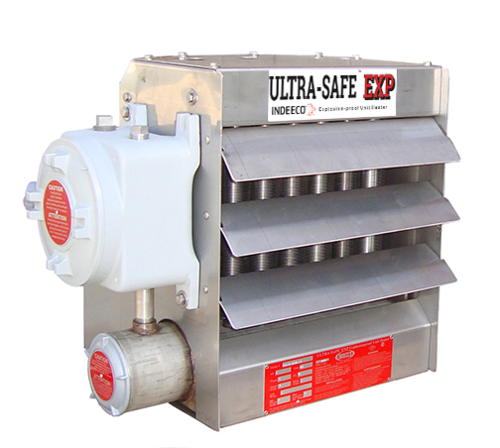

Ultra-Safe™ EXP Explosion-Proof Unit Heater
Ultra-Safe™ EXP Explosion-Proof Unit Heater Overview
ZIRCO distributes INDEECO Ultra-Safe™ EXP Explosion-Proof Unit Heaters as the official Canada representative. These innovative heaters feature the industry's lowest Ignition Temperature Code rating at T3C (320°F/160°C), providing maximum safety for the most demanding hazardous location applications.
The Ultra-Safe EXP design uses nontoxic propylene glycol as a heat transfer fluid, with a low 70 PSIG relief valve setting that ensures vapor temperature stays well below the ignition point. Dual overtemperature protection (both automatic and manual reset) provides redundant safety for critical applications throughout Western Canada's oil & gas, petrochemical, and industrial sectors.
Now available with wet location approval (IP55), the Ultra-Safe EXP is ideal for washdown areas, outdoor installations, and corrosive environments. Choose from standard, 316 stainless steel, or Heresite® coated construction to match your specific application requirements.
Why Choose Ultra-Safe™ EXP Explosion-Proof Unit Heaters?
Lowest Ignition Temperature
T3C rating: 320°F (160°C) - the industry's lowest ignition temperature code for maximum safety in hazardous locations with flammable vapors.
Wet Location Approved
IP55 rated for washdown and outdoor applications. Meets rain-tight requirements of UL 1004-1 for demanding environments.
Dual Safety Protection
Both automatic and manual reset overtemperature cutouts provide redundant safety protection for critical applications.
Corrosion Resistant
Three construction options: Standard powder-coated, 316 stainless steel, or Heresite® coated for harsh chemical environments.
Propylene Glycol Fluid
Nontoxic inhibited heat transfer fluid with freeze protection to -49°F (-45°C) for safe operation in cold climates.
Low Pressure Relief
70 PSIG relief valve setting ensures vapor stays below ignition temperature for maximum operational safety.
Technical Specifications
Standard Features
| Feature | Specification |
|---|---|
| Heat Exchanger | Liquid-to-air design with welded steel headers, finned tube construction, spiral wound aluminum fins |
| Heat Transfer Fluid | Nontoxic inhibited propylene glycol (freeze protection to -49°F/-45°C) |
| Relief Valve | 70 PSIG setting for maximum safety |
| Pressure Test | Hydrostatically tested at 350 psig |
| Fan Motor | Explosion-proof motor with double-shielded bearings, thermal overload protection |
| Motor Class | Class I, Groups C and D; Class II, Groups F and G |
| Operating Temp | Minimum -14°F (-25°C) operation, -49°F (-45°C) storage |
| Cabinet | 14-gauge galvanized steel, beige powder coated, corrosion resistant |
| Louvers | Adjustable with minimum opening safety stops |
| Controls | NEMA 7, 9 cast aluminum enclosure with automatic/manual reset cutouts, magnetic contactor, 24V control transformer |
Hazardous Location Classifications
- Class I, Divisions 1 and 2, Groups C and D - Flammable gases, vapors, or liquids
- Class II, Divisions 1 and 2, Groups E, F and G - Combustible dusts
- Class I, Zones 1 and 2, Group IIB - International hazardous area classification
- Temperature Code T3C, 320°F (160°C) - Industry's lowest ignition temperature rating
Wet Location Features (IP55 Option)
- IP55 washable construction for hose-down applications
- IP55 rated motor for wet and outdoor environments
- Type 4 outdoor rated control enclosure
- Meets rain-tight requirements of UL 1004-1
- Requires corrosion-resistant construction option
Corrosion Resistant Options
| Construction Type | Description | Applications |
|---|---|---|
| Standard | Welded steel heat exchanger, powder-coated cabinet | Dry non-corrosive areas |
| 316 Stainless Steel | 316 SS heat exchanger with aluminum fins, SS cabinet, corrosion-resistant hardware | Waste Water Treatment Plants |
| Heresite® Coated | Coated heat exchanger, cabinet, fan blade | Chemical plants with chlorides |
Factory Options
| Option | Description |
|---|---|
| Wet Location Construction | IP55 rated for wet locations (requires corrosion-resistant option) |
| Disconnect Switch | Factory installed to meet NEC/CEC requirements |
| Group E (Metal Dust) Construction | Class II, Group E compliance |
| Warning Pilot Light | Indicates thermal cutout trip |
| Heater On Pilot Light | Shows heating elements energized |
| Manual Reset with Backup Contactor | Independent secondary overtemperature protection |
| Auto/Fan Selector Switch | Two-position switch for auto heat or fan only |
| Remote Auto/Fan Switch Controls | Prewired for field addition of remote switch |
| Adjustable Thermostat | Factory installed, 50-90°F (10-32°C) range |
| Wet Location Thermostat | Factory installed, 40-80°F (5-25°C) range for wet locations |
| 120 Volt Control Circuit | For special external thermostat circuits |
Typical Applications
- Aircraft Hangars and Service Areas
- Chemical Storage and Handling Areas
- Coal Preparation Plants
- Compressor Stations
- Grain Elevators
- Oil Refineries and Rigs
- Paint Storage Areas
- Petrochemical Plants
- Sewage Pump Stations and Treatment Plants
- Spray Booths
