Jayco Thief Hatch Peak 1
Jayco Peak 1 Super Seal Thief Hatch Overview
The Jayco Peak 1 Super Seal Thief Hatch is the premium model with advanced Blue Viton wrap-around pressure gasket and Teflon-coated construction. As the official Jayco representative for Western Canada, ZIRCO provides these top-of-the-line tank access solutions to oil and gas operations throughout Alberta and beyond.
The Peak 1 works in tandem with vent valves to minimize the escape of light ends of crude in lease storage tanks by maintaining pressure on the tank. This premium model exceeds API 2000 standards for allowable leakage, making it the ideal choice for demanding environments and environmental stewardship. The Super Seal technology features a new Blue Viton wrap-around pressure gasket for superior durability and sealing performance.
Key Benefits for Western Canada Operations:
- Premium model with Blue Viton wrap-around pressure gasket
- Teflon coated construction for maximum durability
- Exceeds API 2000 standards for allowable leakage
- Ultra-low vapor leakage: less than 1.0 cfh at 90% of set pressure
- All high tensile strength aluminum construction
- Complete with Viton gaskets and stainless steel parts
- Great flow characteristics for optimal tank breathing
- Designed for easy maintenance and cleaning
- Locking feature for security
Technical Specifications
Size & Bolt Pattern
| Specification | Value |
|---|---|
| Base and Lid Size | Nominal 8″ round |
| Bolt Pattern | 16 holes at 10 3/8″ circle (API standard) |
| Shipping Weight | Approximately 12 lbs |
Pressure & Vacuum Settings
| Setting | Value |
|---|---|
| Standard Pressure Setting | 4 oz. pressure |
| Standard Vacuum Setting | 0.4 oz. vacuum |
| Optional Pressure Springs | 2, 6, 8, 12, 14, and 16 ounce settings available |
Construction Materials
| Component | Material |
|---|---|
| Construction | All high tensile strength aluminum with Teflon coating |
| Lid and Base | Aluminum castings, Teflon coated |
| Base Gasket | Blue Viton wrap-around pressure gasket (included) |
| Internal Plunger | Teflon coated for demanding environments |
Performance Specifications
| Specification | Value |
|---|---|
| Leakage Rate | Less than 1.0 cfh at 90% of set pressure |
| Flow Characteristics | Great flow characteristics |
| System Operations | Spring-loaded pressure and vacuum relief |
Product Features & Benefits
Super Seal Technology

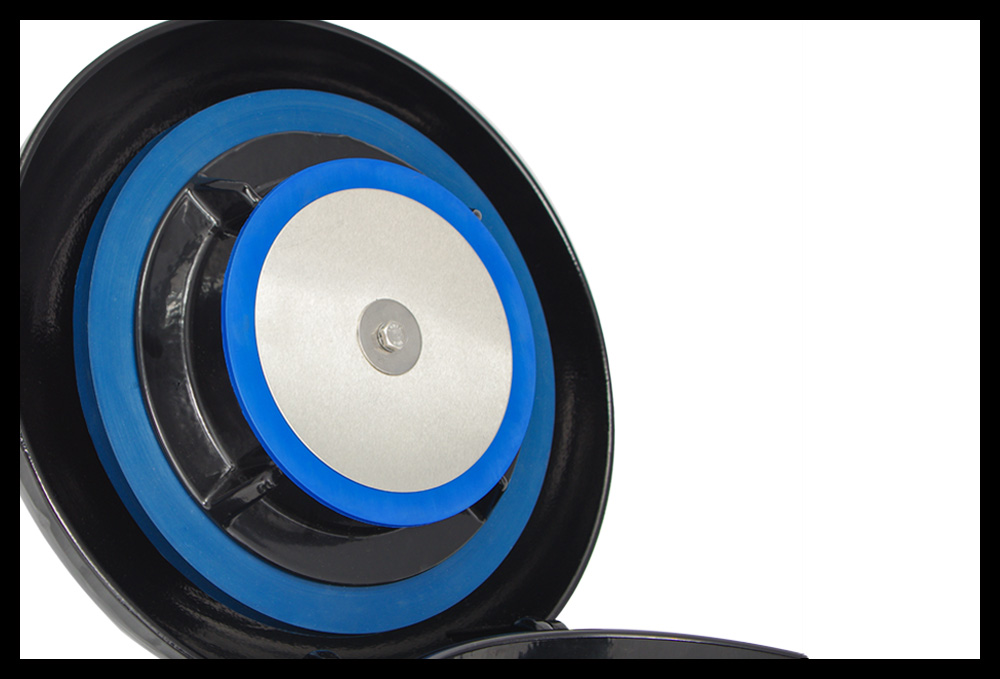

New Blue Viton wrap-around pressure gasket provides our best durability and sealing performance. Enhanced vapor containment for environmental compliance and product quality protection.
Ultra-Low Vapor Leakage
Leakage rate of less than 1.0 cfh at 90% of set pressure. Minimizes escape of light ends of crude in lease storage tanks, supporting environmental stewardship and regulatory compliance.
Easy Maintenance & Cleaning
Designed for optimum performance and easy cleaning. Lightweight aluminum construction provides easy handling for field operations. Interchangeable components ensure quick maintenance and reduced downtime.
Locking Security Feature
Built-in locking mechanism provides security for unauthorized access. Protects tank contents and ensures safe operations in remote field locations throughout Western Canada.
Exceeds API 2000 Standards
Peak 1 exceeds API 2000 standards for allowable leakage, ensuring superior environmental compliance and vapor containment. Best-in-class performance for demanding oil and gas applications requiring the highest standards of safety and reliability.
Teflon Coated Durability
All aluminum castings are Teflon coated for demanding environments. Provides excellent corrosion resistance for harsh oil and gas applications. Suitable for extreme service conditions in Western Canada.
Great Flow Characteristics
Optimized flow design ensures proper tank breathing while maintaining pressure. Works in tandem with vent valves to minimize emissions and protect tank integrity during normal operations.
Product Literature & Resources
Technical Documents
Jayco Thief Hatch Catalog (2025)
Complete product catalog with specifications and features
Full Manual - Thief Hatch (2025)
Complete operation and maintenance manual
Plungers & Gasket Specs (2025)
Technical specifications for plungers and gaskets
Flow Chart Documentation (2025)
Flow chart and performance specifications
Request for Quote
Request for Quote (RFQ) Form
Download and complete this form to submit your thief hatch requirements for quotation
Contact for More Information
ZIRCO is the authorized Western Canada representative for Jayco thief hatches and tank access solutions. Contact our team for:
- Technical specifications and sizing assistance
- Application engineering support
- Quotations and delivery information
- After-sales service and spare parts
- Gasket and plunger replacement guidance
Ensure Vapor Containment with Jayco Thief Hatches
Contact our team today to discuss how Jayco Peak 1 Super Seal Thief Hatches can provide superior vapor containment and tank access for your storage operations. ZIRCO provides expert support and authorized Jayco products for Western Canada oil and gas operations.
