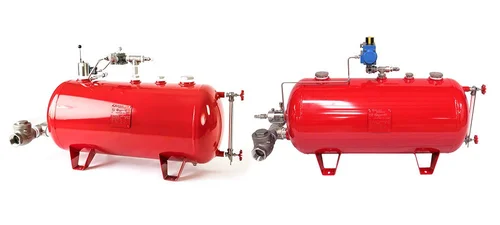

J-7000 Environmental Tank
J-7000 Environmental Tank Overview
ZIRCO is proud to distribute JATCO J-7000 Environmental Tanks as the official representative for Canada. The J-7000 is a 30-gallon environmental tank designed to prevent soil and groundwater pollution generated by oil and gas production, transportation, and refining operations.
The JATCO Tank is placed below waste-producing equipment where liquids collect by gravity flow instead of being allowed to spill and contaminate soil and water. When the tank is full, a float operates a three-way valve, allowing gas pressure to force the liquids out to proper recycling or disposal facilities. When empty, the float moves the valve to the closed position and gas pressure is vented, allowing the tank to fill again by gravity.
Built with very few moving parts and using normally available gas pressure as the motive force, the JATCO Environmental Tank delivers reliable, low-maintenance performance for demanding high-volume applications throughout Western Canada's oil & gas sector. The J-7000 offers three times the capacity of the J-5000, making it ideal for facilities with larger waste fluid volumes.
Why Choose J-7000 Environmental Tanks?
Environmental Protection
Prevents soil and groundwater contamination from oil and gas operations, protecting the environment while reducing clean-up and maintenance costs.
Automatic Operation
Float-activated three-way valve automatically discharges when full and resets when empty, requiring minimal operator intervention.
Low Maintenance
Very few moving parts and robust construction ensure reliable operation with minimal maintenance requirements in harsh industrial environments.
Gas-Powered Operation
Uses normally available gas pressure as the motive force, eliminating the need for electric pumps or external power sources.
Gravity-Fed Design
Simple gravity flow collection system eliminates the need for complex pumping equipment and reduces energy consumption.
30-Gallon Capacity
Handles up to 1400 gallons per hour (gph) flow rate, ideal for high-volume waste fluid collection applications in oil & gas facilities.
J-7000 Environmental Tank Applications
The JATCO J-7000 Environmental Tank is designed for diverse high-volume waste fluid collection applications throughout the oil and gas industry:
- Waste fluid from glycol dehydrators
- Lubricating oil from gas compressors
- Used engine oil from compressors
- Packing leaks from centrifugal pumps
- Packing leaks from reciprocating pumps
- Packing leaks from oil well pump jacks
- Overflow or vent line collection
- Waste liquid from flare lines
- Storm water runoff from equipment skids
- Distillates pump applications
Note: Electric options available. Please contact ZIRCO for more details.
Technical Specifications
J-7000 Tank Specifications
| Specification | Details |
|---|---|
| Capacity | 30 Gallons (113.6 Liters) |
| Flow Rate | 1400 gallons per hour (gph) |
| Design Code | ASME Code Vessel (Standard) |
| Operating Principle | Gravity-fed, gas pressure discharge |
| Valve Type | Three-way float-operated valve |
| Motive Force | Available gas pressure |
JATCO Environmental Tank Series
| Model | Capacity | Flow Rate |
|---|---|---|
| J-5000 | 10 Gallon Receiver | 310 gph |
| J-7000 | 30 Gallon Receiver | 1400 gph |
The J-7000 offers three times the capacity and over 4.5x the flow rate of the J-5000, making it ideal for high-volume applications.
What Is an Environmental Tank?
An environmental tank (also known as a condensate tank or waste fluid collection tank) is designed to capture and contain liquid wastes from industrial processes before they can contaminate soil and groundwater. The JATCO J-7000 is placed below waste-producing equipment where liquids collect by gravity flow.
When the tank reaches capacity, a float mechanism activates a three-way valve that allows gas pressure to force the collected liquids out through a discharge pipe to stock tanks for proper recycling or disposal. Once emptied, the float returns to its resting position, closing the valve and venting the gas pressure, allowing the cycle to begin again.
ZIRCO provides expert application support for Western Canada industries, helping you select the right environmental tank configuration for your specific waste fluid collection requirements. The J-7000 is recommended for facilities with higher waste fluid volumes where the J-5000 capacity would be insufficient.
J-7000 Available Models & Configurations
The JATCO J-7000 Environmental Tank is available in various configurations to suit different applications and requirements:
Standard Models
| Model | Description |
|---|---|
| J-7000cx | 30 Gallon ASME Code Vessel / 1400 gph (Standard Model) |
| J-7000cx SS | Stainless Steel Option (Corrosion Resistance) |
| J-7000-100 ABV | 100 psi Actuated Ball Valve |
| J-7000-200 ABV | 200 psi Actuated Ball Valve |
| J-7000-100 ABV SS | 100 psi Actuated Ball Valve Stainless Steel |
| J-7000-200 ABV SS | 200 psi Actuated Ball Valve Stainless Steel |
Side Mount Pneumatic Level Controller Models
| Model | Description |
|---|---|
| J-7000 SM-P | Side Mount Pneumatic Level Controller |
| J-7000 SM-P 100 ABV | Side Mount Pneumatic Level Controller with 100 psi Actuated Ball Valve |
| J-7000 SM-P 200 ABV | Side Mount Pneumatic Level Controller with 200 psi Actuated Ball Valve |
BTEX System Configurations
BTEX (Benzene, Toluene, Ethylbenzene, and Xylenes) treatment system configurations are available for environmental compliance:
| Model | Configuration |
|---|---|
| J-7000cx VP | Vertical Panel BTEX |
| J-7000cx ST | Shell & Tube BTEX |
| J-7000-100 ABV VP | 100 psi Actuated Ball Valve Vertical Panel |
| J-7000-200 ABV VP | 200 psi Actuated Ball Valve Vertical Panel |
| J-7000-100 ABV ST | 100 psi Actuated Ball Valve Shell & Tube |
| J-7000-200 ABV ST | 200 psi Actuated Ball Valve Shell & Tube |
Vacuum Service Models
| Model | Description |
|---|---|
| J-7000cxv | Vacuum Service Model |
| J-7000cxv 100 ABV | Vacuum Service with 100 psi Actuated Ball Valve |
| J-7000cxv 200 ABV | Vacuum Service with 200 psi Actuated Ball Valve |
| J-7000cxv 100 ABV SS | Vacuum Service 100 psi Actuated Ball Valve Stainless Steel |
| J-7000cxv 200 ABV SS | Vacuum Service 200 psi Actuated Ball Valve Stainless Steel |
Electric Option Models
| Model | Description |
|---|---|
| J-7000e SM-E 100 ABV-EP | Side Mount Electric Level Controller 100 psi Actuated Ball Valve with Electric Pneumatic Solenoid |
| J-7000e SM-E 200 ABV-EP | Side Mount Electric Level Controller 200 psi Actuated Ball Valve with Electric Pneumatic Solenoid |
Custom Configurations: JATCO tanks can be configured to any standard or application-specific requirement. Contact ZIRCO for custom configurations and special application needs.
Product Literature & Resources
Technical Documents
J-7000cx Technical Manual
Complete installation, operation, and maintenance manual for J-7000cx standard model
J-7000cx SS Manual (Stainless Steel)
Technical manual for stainless steel J-7000cx SS model
J-7000-100 ABV Manual
Manual for 100 psi Actuated Ball Valve configuration
J-7000-200 ABV Manual
Manual for 200 psi Actuated Ball Valve configuration
J-7000 SM-P Manual
Side Mount Pneumatic Level Controller technical manual
J-7000 Parts List
Complete parts breakdown and ordering information
Request for Quote
Environmental Tank RFQ Form
Download and complete this form to submit your J-7000 Environmental Tank requirements for quotation
Contact for More Information
ZIRCO is the authorized Canada representative for JATCO J-7000 Environmental Tanks. Contact our team for:
- Technical specifications and sizing assistance
- Application engineering support
- Quotations and delivery information
- After-sales service and support
- Custom configurations for special applications
- High-capacity system recommendations
- BTEX system sizing and recommendations
Ready to Protect Your Environment with J-7000?
Contact our team today to discuss how JATCO J-7000 Environmental Tanks can prevent soil and groundwater contamination at your facility. ZIRCO provides expert support for Western Canada's oil & gas, petrochemical, and industrial sectors.
