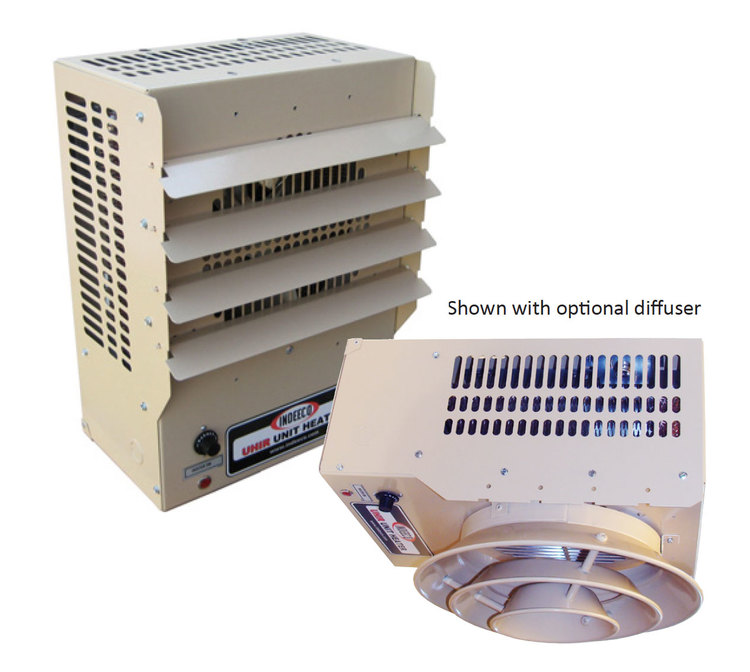

UHIR Series Unit Heater
UHIR Series Unit Heater Overview
ZIRCO distributes INDEECO UHIR Series Unit Heaters as the official Canada representative. These versatile unit heaters offer a comprehensive range of options designed to meet the heating needs of diverse commercial and industrial environments. With 50 standard models available in capacities up to 50 kW, the UHIR provides powerful and reliable heating tailored to your specific space requirements.
Designed to operate efficiently at multiple voltages—208, 240, 277, and 480 VAC—in both single- and three-phase configurations, the UHIR delivers versatility and adaptability to suit various electrical systems and facility demands. The innovative draw-thru airflow design pulls air across the heating elements, ensuring cool element operation and even air distribution for extended element life.
Universal horizontal or vertical discharge mounting provides installation flexibility, while optional diffusers optimize airflow distribution for different mounting heights. Available in standard camel finish with six optional colors or unpainted galvanized steel for corrosion resistance, the UHIR Series integrates seamlessly into any facility aesthetic throughout Western Canada.
Why Choose UHIR Series Unit Heaters?
Versatile Voltage Options
Multiple voltage configurations available: 208, 240, 277, and 480 VAC in both single- and three-phase options to match any electrical system.
Draw-Thru Airflow Design
Innovative draw-thru design pulls air across heating elements for cool operation, even heat distribution, and extended element life.
Flexible Temperature Control
Single-stage or two-stage control with built-in or remote-mounted thermostats available on all heaters for precise temperature management.
Advanced Built-in Controls
Includes automatic reset thermal cutout, manual reset on 10 kW+ units, fan relay, 24V transformer, disconnecting contactor, and power fusing over 48 amps.
Universal Mounting
Horizontal or vertical discharge with optional universal wall/ceiling mounting bracket or field-furnished threaded rods for ceiling mounting.
Color Options
Standard camel finish with six optional colors available: grey, yellow, red, white, blue, textured beige, or unpainted corrosion-resistant galvanized steel.
Technical Specifications
Standard Features
| Feature | Specification |
|---|---|
| Capacity Range | Up to 50 kW with 50 standard models available |
| Voltage Options | 208, 240, 277, and 480 VAC (single and three-phase) |
| Custom KW | Available up to 50 KW (consult factory) |
| Temperature Control | Single-stage or two-stage control with built-in or remote-mounted thermostats |
| Heating Elements | Industrial grade, 0.475" diameter steel sheath with brazed copper plated steel fins and epoxy sealed ends |
| Airflow Design | Draw-thru design pulls air across elements for cool operation and even air distribution |
| Housing Construction | Heavy gauge galvanized steel with camel polyester powder coat finish |
| Color Options | Standard camel; optional grey, yellow, red, white, blue, textured beige, or unpainted galvanized steel |
| Outlet Grille | Individually adjustable louvers to direct airflow; protective outlet fan guard included |
| Fan Motor | Permanently lubricated and thermally protected motor |
| Built-in Controls | Automatic reset thermal cutout; manual reset cutout on heaters 10 kW and above; fan relay; 24V transformer and disconnecting contactor on most heaters |
| Fusing | Power fusing standard on all heaters rated over 48 amps |
| Discharge Direction | Universal horizontal or vertical discharge |
| Mounting Options | Optional universal wall/ceiling mounting bracket or field-furnished threaded rods for ceiling mounting |
Factory Built-in Options
- Custom KW – consult factory
- Power disconnect switch
- Fusing under 48 Amps (not available on heaters 3 to 10 KW)
- Manual Reset Cutout (in addition to automatic cutout) on heaters up to 10 KW
- "Heater On" Pilot Light
- Built-in 24V transformer and contactor for 3 to 5 KW, single phase heaters
- 120V Transformer to replace 24V Transformer
- Summer Fan Switch
- Summer Fan Switch: Remote Pilot Duty
- Built-in Thermostat: 1- or 2-Stage
- Anemostat (Cone) Diffuser
- Radial Diffuser
- 2-Stage Control
Field-Installed Options
Shipped loose for field installation into heater:
- Anemostat (Cone) Diffuser
- Radial Diffuser
- Horizontal Dust Shield
- Disconnect Switch
- Built-in Thermostat: 1- or 2-Stage
- "Heater On" Pilot Light
- Summer Fan Switch: Built-in or Remote
Diffuser Options for Vertical Discharge
Optional diffusers available to optimize airflow distribution for different mounting heights:
- Anemostat (Cone) Diffuser - Provides draft-free air movement at lower mounting heights
- Radial Diffuser - For higher mounting heights; adjustable fins increase floor coverage or can be adjusted for vertical down blast of air
Approvals & Certifications
- UL Listed - Underwriters Laboratories (US and Canada approvals)
Typical Applications
- Factories and Manufacturing Facilities
- Garages and Service Areas
- Mechanical Rooms
- Pump Houses
- Service Areas in Air Handling Units
- Shipping and Receiving Areas
- Storage Areas
- Warehouses and Distribution Centers
- Workshops
Product Literature & Resources
Technical Documents
Contact for More Information
ZIRCO is the authorized Canada representative for INDEECO UHIR Series Unit Heaters. Contact our team for:
- Technical specifications and sizing assistance
- Voltage and phase configuration recommendations
- Custom KW options up to 50 kW
- Color selection and finish options
- Control options and diffuser selection
- Quotations and delivery information
- After-sales service and support
Need Versatile Heating for Your Commercial Space?
Contact our team today to discuss how INDEECO UHIR Series Unit Heaters can provide flexible, reliable heating with 50 standard models and multiple voltage options for your commercial or industrial application. ZIRCO provides expert support for Western Canada's factories, warehouses, workshops, and commercial facilities.
