Jayco Thief Hatch JT-20.2
Jayco JT-20.2 Super Seal Thief Hatch Overview
The Jayco JT-20.2 Super Seal Thief Hatch is designed for optimum performance in vapor containment with the added benefit of a 20" oblong drip pan. As the official Jayco representative for Western Canada, ZIRCO provides these essential tank access solutions to oil and gas operations throughout Alberta and beyond.
The JT-20.2 works in tandem with vent valves to minimize the escape of light ends of crude in lease storage tanks by maintaining pressure on the tank. The extended 20" oblong drip pan contains drippings effectively and provides operators with a convenient workspace for tools during sampling and gauging operations. The Super Seal technology features a new Blue Viton wrap-around pressure gasket for superior durability and sealing performance, making it ideal for demanding environments and environmental stewardship.
Key Benefits for Western Canada Operations:
- 20" oblong drip pan contains drippings effectively
- Provides operator workspace for tools during operations
- Super Seal technology with Blue Viton wrap-around gasket
- Ultra-low vapor leakage: less than 1.0 cfh at 90% of set pressure
- Same 8" opening as JT-8.2 with extended pan
- Great flow characteristics for optimal tank breathing
- Designed for easy maintenance and cleaning
- Locking feature for security
- Teflon coated aluminum for demanding environments
Technical Specifications
Size & Bolt Pattern
| Specification | Value |
|---|---|
| Base and Lid Size | Nominal 8″ round with 20″ long pan |
| Bolt Pattern | 16 holes at 10 3/8″ circle (API standard) |
| Shipping Weight | Approximately 18 lbs |
Pressure & Vacuum Settings
| Setting | Value |
|---|---|
| Standard Pressure Setting | 4 oz. pressure |
| Standard Vacuum Setting | 0.4 oz. vacuum |
| Optional Pressure Springs | 2, 6, 8, 12, 14, and 16 ounce settings available |
Construction Materials
| Component | Material |
|---|---|
| Construction | All high tensile strength aluminum with Teflon coating |
| Lid and Base | Aluminum castings, Teflon coated |
| Base Gasket | Blue Viton wrap-around pressure gasket (included) |
| Internal Plunger | Teflon coated for demanding environments |
Performance Specifications
| Specification | Value |
|---|---|
| Leakage Rate | Less than 1.0 cfh at 90% of set pressure |
| Flow Characteristics | Great flow characteristics |
| System Operations | Spring-loaded pressure and vacuum relief |
Product Features & Benefits
Super Seal Technology

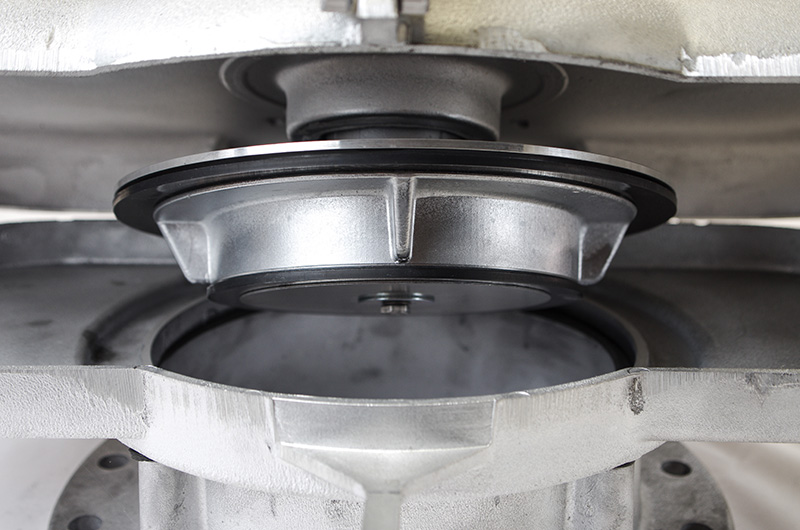

New Blue Viton wrap-around pressure gasket provides our best durability and sealing performance. Enhanced vapor containment for environmental compliance and product quality protection.
Ultra-Low Vapor Leakage
Leakage rate of less than 1.0 cfh at 90% of set pressure. Minimizes escape of light ends of crude in lease storage tanks, supporting environmental stewardship and regulatory compliance.
Easy Maintenance & Cleaning
Designed for optimum performance and easy cleaning. Lightweight aluminum construction provides easy handling for field operations. Interchangeable components ensure quick maintenance and reduced downtime.
Locking Security Feature
Built-in locking mechanism provides security for unauthorized access. Protects tank contents and ensures safe operations in remote field locations throughout Western Canada.

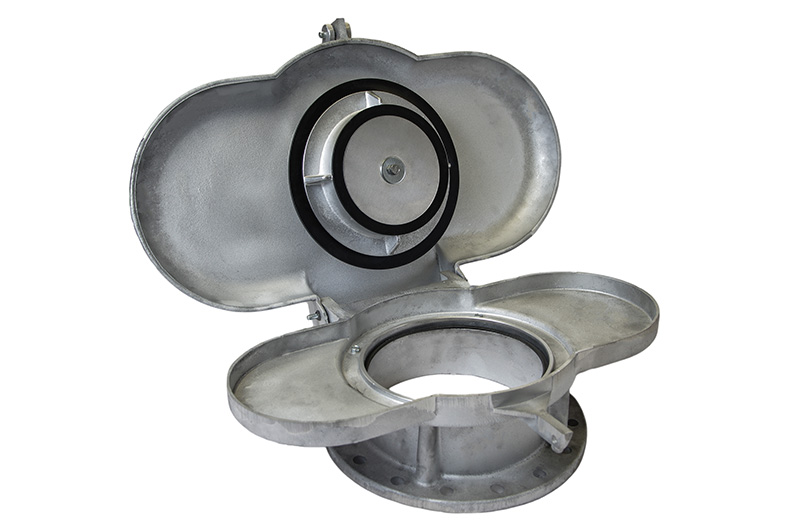

20" Oblong Drip Pan Workspace
The extended 20" oblong drip pan contains drippings effectively and provides a convenient workspace for operators during sampling and gauging operations. Same 8" opening as JT-8.2 with practical workspace.
Teflon Coated Durability
All aluminum castings are Teflon coated for demanding environments. Provides excellent corrosion resistance for harsh oil and gas applications. Suitable for extreme service conditions in Western Canada.
Great Flow Characteristics
Optimized flow design ensures proper tank breathing while maintaining pressure. Works in tandem with vent valves to minimize emissions and protect tank integrity during normal operations.
Product Literature & Resources
Technical Documents
Jayco Thief Hatch Catalog (2025)
Complete product catalog with specifications and features
Full Manual - Thief Hatch (2025)
Complete operation and maintenance manual
Plungers & Gasket Specs (2025)
Technical specifications for plungers and gaskets
Flow Chart Documentation (2025)
Flow chart and performance specifications
