Secure EnviroBox Truck Out Boxes
Secure EnviroBox Truck Out Boxes Overview
The loading and unloading of oil can be a messy and time-consuming process. Stay clean and stay safe with a Secure EnviroBox from Secure Enviro Systems.
ZIRCO distributes Secure Enviro Systems EnviroBoxes which provide load line spill containment solutions to save your operation time and money. Our innovative design has streamlined the installation process - what once took hours and two people now takes 20 minutes with just one person.
The removable sleeve design eliminates the need for welding in threaded or flanged nipples. Simply slide the EnviroBox and welded sleeve over the piping, position and secure with an inside and outside U bolt for easy installation. Our EnviroBoxes also help reduce the chance of environmental contaminants spilling onto the surrounding land and water.
Why Choose Secure EnviroBox Truck Out Boxes?
Powder Coated Enclosure
14 gauge steel construction with durable powder coating for long-lasting corrosion resistance in harsh industrial environments. Built to withstand Western Canada's extreme weather conditions.
Quick Installation
Removable sleeve design with U-bolt mounting eliminates welding. Installation reduced from hours (2 people) to just 20 minutes (1 person).
Safety Features
Latching lid with safety arm to secure lids when open, keeping operators safe. Lockable design for unauthorized access prevention.
Quality Components
Camlock fitting, ported nipple, suction valve, sample valve, and ground lug for static electricity protection. Highest industry quality standards.
Leak Tested Containment
Fully leak tested containment with MTRs (Material Test Reports) available. Removable back panel for easy installation and servicing of valves.
In Stock Availability
Standard S, M, and L model boxes typically available in stock for immediate delivery across Western Canada. Custom configurations also available.
Technical Specifications
Standard Features Include
| Feature | Description |
|---|---|
| Enclosure | Powder Coated Enclosure (14 ga.) |
| Fittings | Camlock Fitting, Ported Nipple |
| Valves | Suction Valve, Sample Valve |
| Safety | Ground Lug, Latching Lid, Lockable |
| Certification | MTRs (Material Test Reports) |
| Testing | Leak tested containment |
| Service Access | Removable back panel for easy install and servicing |
| Flanges | CL150 (unless otherwise requested) |
| Quality | Highest industry quality |
Product Models
Single Line Load Out (S-Model)
| Model | Type |
|---|---|
| S-Model | 2" Single Valve, Threaded Assembly |
| S-Model | 2" Single Valve, Welded Assembly |
| S-Model | 3" Single Valve, Threaded Assembly |
| S-Model | 3" Single Valve, Welded Assembly |
| S-Model | 4" Single Valve, Threaded Assembly |
| S-Model | 4" Single Valve, Welded Assembly |

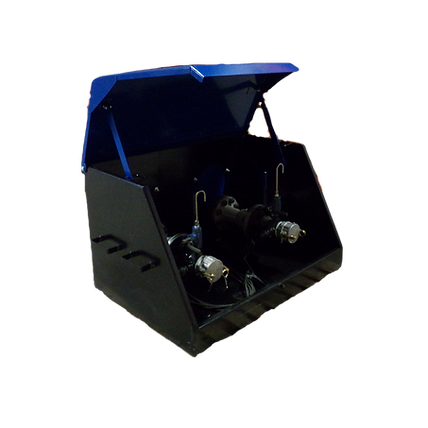

Double Line Load Out (M-Model)
| Model | Type |
|---|---|
| M-Model | 2" x 2" Double Valve, Threaded Assembly |
| M-Model | 2" x 2" Double Valve, Welded Assembly |
| M-Model | 3" x 3" Double Valve, Threaded Assembly |
| M-Model | 3" x 3" Double Valve, Welded Assembly |
| M-Model | 4" x 4" Double Valve, Threaded Assembly |
| M-Model | 4" x 4" Double Valve, Welded Assembly |

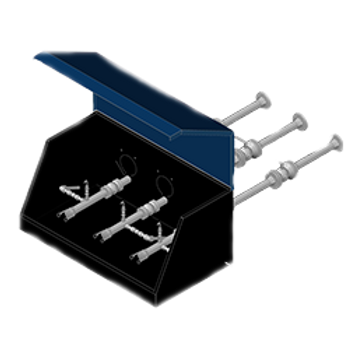

Triple Line Load Out (L-Model)
| Model | Type |
|---|---|
| L-Model | 2" x 2" x 2" Triple Valve, Threaded Assembly |
| L-Model | 2" x 2" x 2" Triple Valve, Welded Assembly |
| L-Model | 3" x 3" x 3" Triple Valve, Threaded Assembly |
| L-Model | 3" x 3" x 3" Triple Valve, Welded Assembly |
| L-Model | 2" x 3" x 4" Triple Valve, Welded Assembly |
Note: Standard S, M, and L Model Boxes are typically available IN STOCK! Other valve sizes and configurations available upon request.
Customization Options
| Option | Details |
|---|---|
| Customization | Fully Customizable designs available |
| Box Material | Carbon Steel, Aluminum or Stainless Steel Containment Box Material |
| Piping Materials | Carbon or Stainless Piping Materials |
| Piping Assembly | Threaded and/or Welded Piping Materials |
| Valves | Threaded and/or Flanged Valves |
| Compliance | ABSA Compliant B31.3 Piping |
| NDE Options | All NDE Options Available - Radiography, MPI, etc |
| Testing | Hydrotest and/or Pneumatic Tests |
| Quality | Fully Leak Tested Containment, Full Quality Control Package |
Typical Applications
- Oil and gas loading operations
- Truck loading terminals
- Rail car loading facilities
- Fluid transfer stations
- Petrochemical plants
- Refineries
- Storage tank farms
- Industrial fluid handling facilities throughout Western Canada
Innovative Design Features
The truck out and load line boxes created by Secure Enviro Systems provide load line spill containment solutions that save your operation time and money. Our EnviroBox designs have streamlined the installation process and made it quicker and easier.

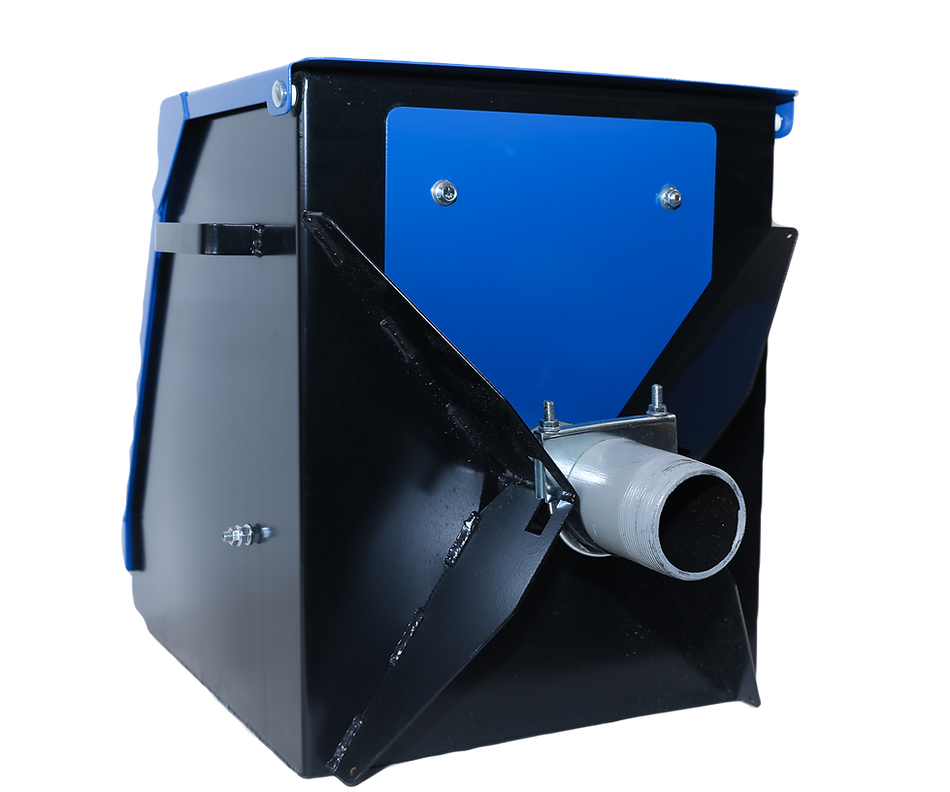

Our innovative design incorporates a removable sleeve in the box in place of welding in a threaded or flanged nipple. The EnviroBox and welded sleeve are slid over the piping, positioned and secured with an inside and outside U bolt for easy installation.
Our EnviroBoxes also have a latching safety arm to secure the lids when open to keep operators safe. We offer a wide range of truck out and load line EnviroBoxes to fit the needs of your company.
Product Literature & Resources
Technical Documents
Secure Enviro Brochure
Complete product specifications and configurations
Request for Quote
Request for Quote (RFQ) Form
Download and complete this form to submit your EnviroBox requirements for quotation
Contact for More Information
ZIRCO is the authorized Western Canada representative for Secure Enviro Systems EnviroBoxes. Contact our team for:
- Technical specifications and sizing assistance
- Application engineering support
- Quotations and delivery information
- After-sales service and support
- Custom configurations for special applications
- Stock availability and lead times
Ready to Streamline Your Loading Operations?
Contact our team today to discuss how Secure Enviro Systems EnviroBox truck out boxes can provide safe, clean, and efficient loading solutions for your operation. ZIRCO provides expert support for Western Canada's oil & gas and petrochemical industries.
