Jayco Inline Vent Valve with Super Seal Technology
Jayco Inline Vent Valve Overview
ZIRCO is proud to distribute Jayco Inline Vent Valves as the official representative for Western Canada. Designed specifically for horizontal pipe-away configurations, these valves feature slip-on flanges at each end for easy connection to pipe runs. Unlike stack valves that mount vertically, inline vent valves integrate horizontally into existing piping systems.

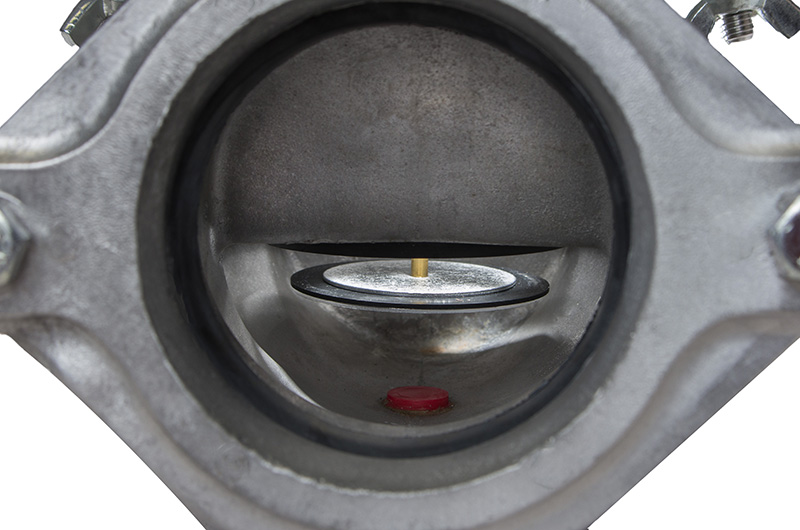

Available in three sizes - JV 101 (2-inch), JV 301 (3-inch), and JV 500 (4-inch) - these valves are engineered for low impact on media flow through the pipe run. The full opening lid design and large body cavity ensure optimal flow characteristics while providing built-in vacuum breaker protection at standard 0.4 ounce setting.
Built with high tensile aluminum construction, these valves offer exceptional durability while remaining easy to maintain. Additional weights are available in one-ounce increments for precise pressure settings, making them ideal for Western Canada's demanding oil & gas operating conditions.
Why Choose Jayco Inline Vent Valves?
Horizontal Pipe-Away Design
Designed specifically for horizontal pipe-away configuration with slip-on flanges at each end for easy connection to pipe runs. Integrates seamlessly into horizontal piping systems.
Flow Optimization
Bodies engineered for low impact on media flow through the pipe run. Minimal restriction ensures optimal flow characteristics in horizontal installations.
Super Seal Technology

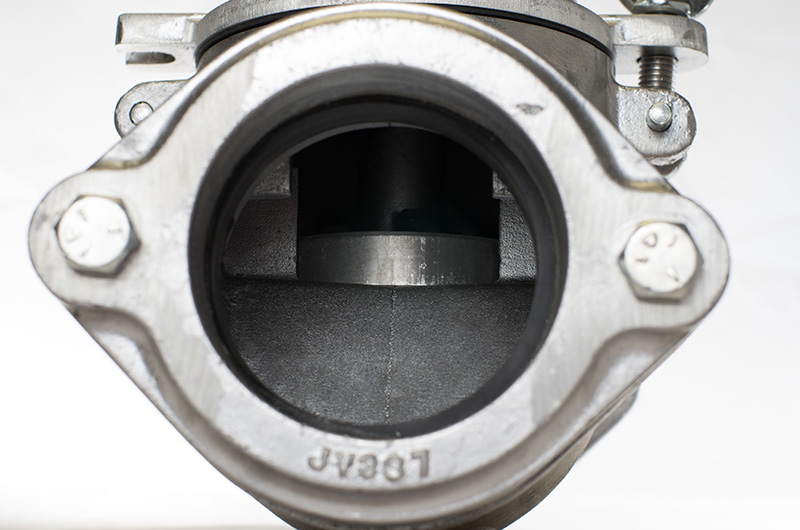

Jayco's patented Super Seal technology provides exceptional sealing performance with less than 0.5 CFH leakage at 90% of set pressure, minimizing emissions and product loss.
Full Opening Lid Design

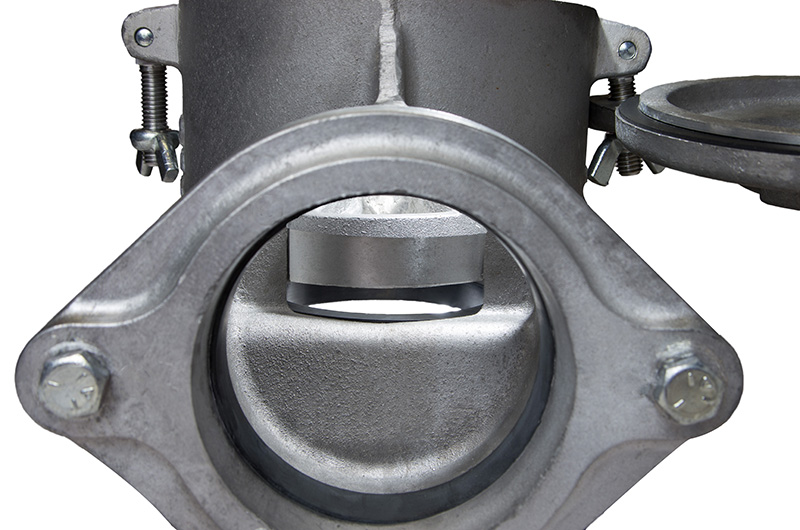

Full opening lid allows complete access for maintenance and inspection, while the large body cavity ensures optimal flow characteristics during pressure relief events.
Flexible Pressure Settings
2 & 3 inch models: 1.3 ounce standard. 4 inch model: 1.5 ounce standard. Additional weights available in one-ounce increments for precise pressure settings.
Western Canada Support
ZIRCO provides local support and inventory for Alberta's oil & gas industry. Expert application engineering and after-sales service from Calgary-based team.
Technical Specifications
Inline Vent Valve Models
| Model | Size | Pressure Setting | Vacuum Setting |
|---|---|---|---|
| JV 101 | 2-inch (50 mm) | 1.3 ounce | 0.4 ounce (standard) |
| JV 301 | 3-inch (75 mm) | 1.3 ounce | 0.4 ounce (standard) |
| JV 500 | 4-inch (100 mm) | 1.5 ounce | 0.4 ounce (standard) |
Note: Additional weights available in one-ounce increments for precise pressure settings.
Technical Specifications
| Specification | Details |
|---|---|
| Seal Performance | <0.5 CFH @ 90% of set pressure |
| Vacuum Setting | 0.4 ounce (standard) |
| Pressure Settings | 1.3-1.5 ounce depending on model size |
| Body Material | High tensile aluminum |
| Lid Material | High tensile aluminum |
| Flange Material | High tensile aluminum |
| Standard Gasket | Buna N |
| Optional Gasket | Viton |
| Design Features | Full opening lid, large body cavity, built-in vacuum breaker |
| Connection Type | Slip-on flanges at each end |
| Installation Orientation | Horizontal pipe-away configuration |
Typical Applications
- Horizontal pipe-away installations in oil & gas industry
- Lease storage tanks with horizontal venting requirements
- Production storage tanks with pipe-away venting systems
- Applications requiring minimal flow restriction
- Remote field storage with horizontal piping
- Integration into existing horizontal pipe runs
- Sites where vertical mounting is not feasible
- Applications requiring easy integration into pipe systems
Why Choose Jayco Inline Vent Valves?
Jayco Inline Vent Valves are specifically designed for horizontal pipe-away installations in the oil & gas industry, offering reliable pressure and vacuum protection with minimal impact on media flow. The horizontal design with slip-on flanges provides a distinct advantage over stack valves when vertical mounting is not feasible or when integration into existing horizontal pipe runs is required.
The slip-on flange design allows for easy connection to pipe runs, while the full opening lid provides complete access for inspection and maintenance. Engineered for optimal flow characteristics, these valves minimize restriction in horizontal installations. ZIRCO's Western Canada team provides expert application support to ensure proper valve selection for your specific operating conditions.
With local inventory and application engineering support from Calgary, ZIRCO ensures quick delivery and technical assistance for Alberta's oil & gas operators. The compact design makes these valves ideal for space-constrained installations where vertical venting is not practical.
Product Literature & Resources
Technical Documents
Jayco Mini Catalog - Vent Valve
Complete product catalog (1,977 KB)
Jayco Super Seal Vent Valve Brochure
Super Seal technology specifications (288 KB)
Maintenance Manual - Vent Valve
Installation and maintenance guide (675 KB)
Gasket Specifications 2017
Gasket material specifications (27 KB)
Jayco Mini Catalog - Pressure Settings 2024
Updated pressure settings catalog (180.6 KB)
Parts List - Inline Vent Valve
Complete parts list for inline vent valves (296.6 KB)
Request for Quote
Request for Quote (RFQ) Form
Download and complete this form to submit your vent valve requirements for quotation
Contact for More Information
ZIRCO is the authorized Western Canada representative for Jayco Inline Vent Valves. Contact our team for:
- Technical specifications and sizing assistance
- Application engineering support
- Quotations and delivery information
- After-sales service and maintenance support
- Gasket selection and compatibility guidance
- Inventory availability from Calgary
Ready to Protect Your Storage Tanks?
Contact our team today to discuss how Jayco Inline Vent Valves with horizontal pipe-away design can provide reliable pressure and vacuum relief for your storage tanks. Engineered for optimal flow characteristics with minimal impact on media flow through pipe runs.
