Jayco Stack Vent Valve with Super Seal Technology
Jayco Stack Vent Valve Overview
ZIRCO is proud to distribute Jayco Stack Vent Valves as the official representative for Western Canada. Designed to install atop vertical pipes, these valves vent pressure from vessels to atmosphere while allowing outside air intake during vacuum conditions, providing comprehensive protection for storage tanks.
Available in three sizes - JV 200 (2-inch), JV 402 (3-inch), and JV 602 (4-inch) - these valves feature Jayco's innovative Super Seal technology for exceptional vapor containment. The vertical installation design makes them ideal for top-mounted tank venting applications where horizontal pipe runs are not feasible.
With optional venting levers for manual venting capability and high tensile aluminum construction, these valves offer reliable performance and minimal maintenance requirements. Additional weights are available in one-ounce increments for precise pressure settings to meet your specific operating conditions.
Why Choose Jayco Stack Vent Valves?
Vertical Pipe Installation
Designed to install atop vertical pipes. Pressure is vented directly to atmosphere while allowing outside air intake during vacuum conditions for complete tank protection.
Bidirectional Airflow
Vents vessel pressure out to atmosphere while drawing outside air in during vacuum conditions. Ensures proper pressure balance and prevents tank collapse.
Super Seal Technology
Jayco's patented Super Seal technology provides exceptional sealing performance with less than 0.5 CFH leakage at 90% of set pressure, minimizing emissions and product loss.
Optional Venting Levers
Available with optional venting levers for manual venting capability. Provides operators with manual control when needed for maintenance or inspections.
Flexible Pressure Settings
2 & 3 inch models: 1.3 ounce standard. 4 inch model: 1.5 ounce standard. Additional weights available in one-ounce increments for precise pressure settings.
Western Canada Support
ZIRCO provides local support and inventory for Alberta's oil & gas industry. Expert application engineering and after-sales service from Calgary-based team.
Technical Specifications
Stack Vent Valve Models
| Model | Size | Pressure Setting | Vacuum Setting |
|---|---|---|---|
| JV 200 | 2-inch (50 mm) | 1.3 ounce | 0.4 ounce (standard) |
| JV 402 | 3-inch (75 mm) | 1.3 ounce | 0.4 ounce (standard) |
| JV 602 | 4-inch (100 mm) | 1.5 ounce | 0.4 ounce (standard) |
Note: Additional weights available in one-ounce increments for precise pressure settings.
Technical Specifications
| Specification | Details |
|---|---|
| Seal Performance | <0.5 CFH @ 90% of set pressure |
| Vacuum Setting | 0.4 ounce (standard) |
| Pressure Settings | 1.3-1.5 ounce depending on model size |
| Standard Gasket | Buna N |
| Optional Gasket | Viton |
| Installation Orientation | Vertical (atop vertical pipe) |
| Optional Features | Venting levers for manual venting |

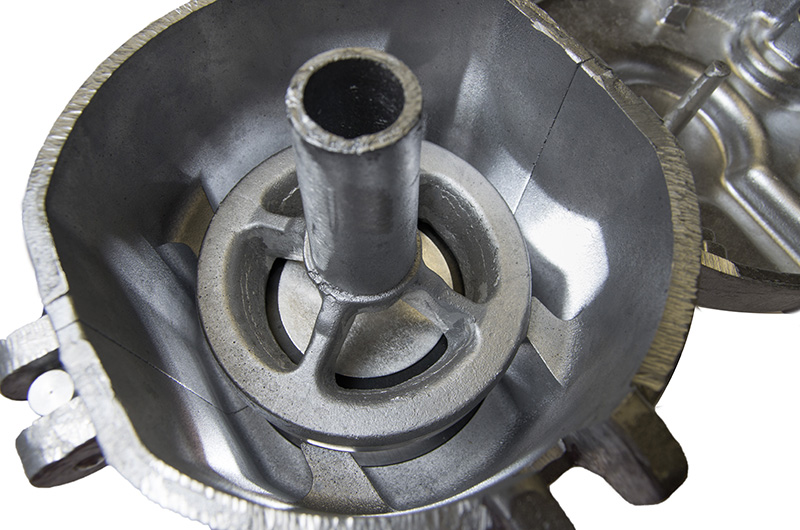

| Design Features | Super Seal technology, full opening lid, large body cavity |
Typical Applications
- Vertical pipe installations on storage tanks
- Lease storage tanks requiring top-mounted venting
- Applications where space is limited around tank
- Sites requiring manual venting capability
- Production storage tanks with vertical vent lines
- Applications where atmospheric venting is required
- Oil & gas industry tank venting systems
- Remote field storage with vertical piping
Why Choose Jayco Stack Vent Valves?
Jayco Stack Vent Valves are specifically designed for vertical installation atop pipes, offering reliable pressure and vacuum protection with atmospheric venting. The vertical design with Super Seal technology ensures excellent sealing performance, helping operators meet emissions regulations while protecting their storage assets.
The top-mounted installation makes these valves ideal for applications where horizontal pipe runs are not practical or where space around the tank is limited. Optional venting levers provide manual control capability for maintenance operations. ZIRCO's Western Canada team provides expert application support to ensure proper valve selection for your specific operating conditions.
With local inventory and application engineering support from Calgary, ZIRCO ensures quick delivery and technical assistance for Alberta's oil & gas operators. The stack design is particularly suited for tank battery installations where vertical venting is standard practice.
Product Literature & Resources
Technical Documents
Request for Quote
Request for Quote (RFQ) Form
Download and complete this form to submit your vent valve requirements for quotation
Contact for More Information
ZIRCO is the authorized Western Canada representative for Jayco Stack Vent Valves. Contact our team for:
- Technical specifications and sizing assistance
- Application engineering support
- Quotations and delivery information
- After-sales service and maintenance support
- Gasket selection and compatibility guidance
- Inventory availability from Calgary
Ready to Protect Your Storage Tanks?
Contact our team today to discuss how Jayco Stack Vent Valves with vertical installation design can provide reliable pressure and vacuum relief for your storage tanks. Engineered for atmospheric venting with manual control options.
