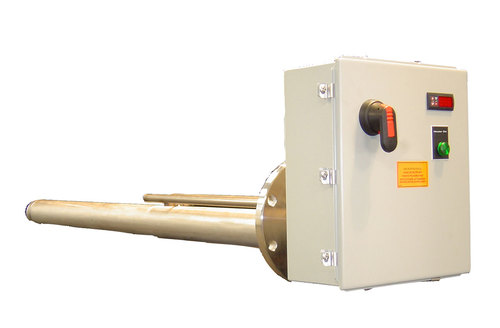

Tank and Basin Heaters
Tank and Basin Heaters Overview
ZIRCO is proud to distribute INDEECO tank and basin heaters as the official representative for Western Canada. These specialized open coil heaters feature low watt density heating elements designed for uniform heating of temperature-sensitive materials. With an exceptional operating range from -300°F to 1,000°F (-184°C to 538°C), they handle diverse industrial heating applications.
The open coil design uses heavy gauge nickel-chromium alloy wire supported by ceramic insulators, providing excellent heat transfer and uniform temperature distribution. Heating elements can be replaced without draining the tank, minimizing downtime and maintenance costs. Available in pipe insert, deep tank, and cooling tower configurations to meet specific application requirements.
Built by INDEECO to the highest standards with CSA certification, these heaters deliver reliable performance for Western Canada's oil & gas, chemical processing, and industrial sectors. Trust ZIRCO's expert application support to select the right heater for your specific requirements.
Why Choose INDEECO Tank and Basin Heaters?
Wide Temperature Range
Exceptional operating range from -300°F to 1,000°F (-184°C to 538°C) for diverse heating applications including cryogenic to high-temperature processes.
Open Coil Design
Low watt density open coil elements provide uniform heating for temperature-sensitive materials, preventing hot spots and ensuring consistent heat distribution.
Replaceable Elements
Heating elements can be replaced without draining the tank, significantly reducing maintenance downtime and operational costs for industrial facilities.
Three Product Types
Available in pipe insert, deep tank, and cooling tower configurations, each optimized for specific applications and installation requirements.
CSA Approved
Certified for safety and compliance by CSA, meeting rigorous standards for electrical safety and performance in industrial heating applications.
Versatile Applications
Ideal for heating gases, fluids, viscous materials, and temperature-sensitive substances across diverse industrial applications throughout Western Canada.
Technical Specifications
Product Types and Applications
| Product Type | Description | Applications |
|---|---|---|
| Pipe Insert Heaters | 3" horizontal pipe insertion, low watt density over large surface area | Sensitive fluids, mildly corrosive environments with Schedule 80 pipe wall |
| Deep Tank Heaters | Manhole fit, split riser design, 5-50 W/Sq.In. watt density range | Water (50 W/Sq.In.) to heavy fuel oils (5 W/Sq.In.) in enclosed tanks |
| Cooling Tower Heaters | 25 W/Sq.In. max watt density, through-wall or over-the-side construction | Concrete sumps, cooling towers, viscous fluids with adjustable sludge legs |
General Specifications
| Feature | Specification |
|---|---|
| Temperature Range | -300°F to 1,000°F (-184°C to 538°C) |
| Element Type | Open coil, nickel-chromium alloy wire |
| Element Support | Ceramic insulators on heavy sheet metal strip |
| Watt Density Range | 5-50 W/Sq.In. (varies by application) |
| Pipe Insert Size | 3" horizontal pipe |
| Certifications | CSA approved |
| Outlet Box Options | Liquidproof/explosion-resistant |
| Support Features | Adjustable sludge legs on all heaters |
Typical Applications
- Water heating and temperature maintenance
- Heavy fuel oil heating and viscosity control
- Viscous fluid heating and processing
- Cooling tower freeze protection
- Concrete sump heating and temperature maintenance
- Temperature-sensitive material heating
- Gas heating applications
- Chemical process heating
Design Considerations
INDEECO tank and basin heaters feature open coil elements that provide superior uniform heating compared to sheathed elements. The low watt density design prevents hot spots and ensures consistent temperature distribution throughout the heated medium. This makes them ideal for temperature-sensitive materials where precise thermal control is critical.
Selecting the right product type depends on your specific application. Pipe insert heaters are ideal for sensitive fluids requiring gentle heating. Deep tank heaters suit enclosed tanks where manhole access is available. Cooling tower heaters provide freeze protection for below-grade sumps and viscous fluid applications. ZIRCO's application engineers can help you choose the optimal configuration.
As the authorized Western Canada representative for INDEECO, ZIRCO provides complete technical support including product selection, sizing assistance, and application engineering. Contact our team to discuss your tank and basin heating requirements.
Product Literature & Resources
Technical Documents
Tank Heater Catalog
Complete specifications, dimensions, and product information for all tank and basin heater models
Request for Quote
Request for Quote (RFQ) Form
Download and complete this form to submit your immersion heater requirements for quotation
Contact for More Information
ZIRCO is the authorized Western Canada representative for INDEECO tank and basin heaters. Contact our team for:
- Product selection and sizing assistance
- Technical support and application engineering
- Quotations and delivery information
- After-sales service and support
- Custom configuration options
- CAD drawings and technical documentation
Ready to Find the Right Tank and Basin Heater Solution?
Contact our team today to discuss how INDEECO tank and basin heaters can provide reliable, uniform heating for your industrial applications. ZIRCO provides expert support for Western Canada's industrial sectors.
